Técnicas avançadas para QAOA

Estimativa de uso: 3 minutos em um processador Heron r2 (NOTA: Esta é apenas uma estimativa. O tempo de execução pode variar.)

Contexto

Este notebook apresenta técnicas avançadas para melhorar o desempenho do Algoritmo de Otimização Aproximada Quântica (QAOA) com um grande número de qubits. Consulte o tutorial Resolver problemas de otimização quântica em escala utilitária para uma introdução ao QAOA.

As técnicas avançadas apresentadas neste notebook incluem:

• Estratégia SWAP com mapeamento inicial SAT: Esta é uma passagem de transpilação projetada especificamente para QAOA que utiliza uma estratégia SWAP e um solver SAT em conjunto para melhorar a seleção de quais qubits físicos no QPU devem ser utilizados. A estratégia SWAP explora a comutatividade dos operadores QAOA para reordenar as portas de modo que camadas de portas SWAP possam ser executadas simultaneamente, reduzindo assim a profundidade do circuito [1]. O solver SAT é utilizado para encontrar um mapeamento inicial que minimize o número de operações SWAP necessárias para mapear os qubits do circuito aos qubits físicos do dispositivo [2] .
• Função de custo CVaR: Tipicamente, o valor esperado do Hamiltoniano de custo é utilizado como função de custo para o QAOA, mas conforme demonstrado em [3], focar na cauda da distribuição, em vez do valor esperado, pode melhorar o desempenho do QAOA para problemas de otimização combinatória. O CVaR cumpre esse papel. Para um conjunto de amostras com os valores objetivos correspondentes do problema de otimização considerado, o Valor em Risco Condicional (CVaR) com nível de confiança $\alpha \in [0, 1]$ é definido como a média das $\alpha$ melhores amostras [3]. Portanto, $\alpha = 1$ corresponde ao valor esperado padrão, enquanto $\alpha=0$ corresponde ao mínimo das amostras fornecidas, e $\alpha \in (0, 1)$ representa um equilíbrio entre focar nas melhores amostras e ainda aplicar alguma média para suavizar o espaço de otimização. Além disso, o CVaR pode ser utilizado como uma técnica de mitigação de erros para melhorar a qualidade da estimativa do valor objetivo [4].

Requisitos

Antes de iniciar este tutorial, certifique-se de ter os seguintes pacotes instalados:

• Qiskit SDK v2.0 ou posterior, com suporte a visualização
• Qiskit Runtime v0.43 ou posterior (pip install qiskit-ibm-runtime)
• Biblioteca de grafos Rustworkx (pip install rustworkx)
• Python SAT (pip install python-sat)

Configuração

# Added by doQumentation — required packages for this notebook
!pip install -q matplotlib numpy python-sat qiskit qiskit-ibm-runtime rustworkx scipy

from __future__ import annotations

import numpy as np
import rustworkx as rx
from dataclasses import dataclass
from itertools import combinations
from threading import Timer
from collections.abc import Callable, Iterable
from pysat.formula import CNF, IDPool
from pysat.solvers import Solver
from scipy.optimize import minimize
from rustworkx.visualization import mpl_draw as draw_graph

from qiskit.quantum_info import SparsePauliOp
from qiskit.circuit.library import QAOAAnsatz
from qiskit.circuit import QuantumCircuit, ParameterVector
from qiskit.transpiler import CouplingMap, PassManager
from qiskit.transpiler.preset_passmanagers import generate_preset_pass_manager
from qiskit.transpiler.passes.routing.commuting_2q_gate_routing import (
    SwapStrategy,
    FindCommutingPauliEvolutions,
    Commuting2qGateRouter,
)

from qiskit_ibm_runtime import QiskitRuntimeService, Session
from qiskit_ibm_runtime import SamplerV2 as Sampler

Problema Max-Cut

Vamos considerar a resolução do problema Max-Cut em um grafo com 100 nós utilizando QAOA. O problema Max-Cut é um problema de otimização combinatória definido em um grafo $G = (V, E)$, onde $V$ é o conjunto de vértices e $E$ é o conjunto de arestas. O objetivo é particionar os vértices em dois conjuntos, $S$ e $V \setminus S$, de forma que o número de arestas entre os dois conjuntos seja maximizado. Neste exemplo, utilizamos um grafo com 100 nós baseado em um mapa de acoplamento de hardware.

Passo 1: Mapear entradas clássicas para um problema quântico

Grafo → Hamiltoniano

Primeiro, mapeie o problema em um circuito quântico adequado para o QAOA. Detalhes sobre este processo podem ser encontrados no tutorial introdutório de QAOA.

# Instantiate runtime to access backend
service = QiskitRuntimeService()
backend = service.least_busy(
    min_num_qubits=100, operational=True, simulator=False
)
print(backend)

<IBMBackend('ibm_fez')>

backend.coupling_map.is_symmetric

True

n = 100
graph_100 = rx.PyGraph()
graph_100.add_nodes_from((np.arange(0, n, 1)))
w = 1.0
elist = []

for edge in backend.coupling_map:
    if (edge[0] < n) and (edge[1] < n):
        if (edge[1], edge[0], w) not in elist:
            elist.append((edge[0], edge[1], w))

graph_100.add_edges_from(elist)
draw_graph(graph_100, with_labels=True)

# Construct cost hamiltonian

def build_max_cut_paulis(graph: rx.PyGraph) -> list[tuple[str, float]]:
    """Convert the graph to Pauli list.

    This function does the inverse of `build_max_cut_graph`
    """
    pauli_list = []
    for edge in list(graph.edge_list()):
        paulis = ["I"] * len(graph)
        paulis[edge[0]], paulis[edge[1]] = "Z", "Z"

        weight = graph.get_edge_data(edge[0], edge[1])

        pauli_list.append(("".join(paulis)[::-1], weight))

    return pauli_list

max_cut_paulis = build_max_cut_paulis(graph_100)

cost_hamiltonian = SparsePauliOp.from_list(max_cut_paulis)
print("Cost Function Hamiltonian:", cost_hamiltonian)

Cost Function Hamiltonian: SparsePauliOp(['IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZ', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZI', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII'],
              coeffs=[1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j])

Passo 2: Otimizar o problema para execução em hardware quântico

Estratégia SWAP com mapeamento inicial SAT

Demonstraremos como construir e otimizar circuitos QAOA utilizando a estratégia SWAP com mapeamento inicial SAT, uma passagem de transpilação projetada especificamente para QAOA aplicada a problemas quadráticos.

Neste exemplo, escolhemos uma estratégia de inserção de SWAP para blocos de portas comutativas de dois qubits, que aplica camadas de portas SWAP executáveis simultaneamente no mapa de acoplamento. Essa estratégia é apresentada em [1] e é passada para o Commuting2qGateRouter, que é exposto como uma passagem de transpilação padronizada do Qiskit (veja Commuting2qGateRouter). Utilizamos uma estratégia de SWAP em linha neste exemplo.

# Extract longest path with no repeated nodes
nodes = rx.longest_simple_path(graph_100)

# Collect even edges and odd edges
even_edges = [
    (nodes[i], nodes[i + 1])
    if nodes[i] < nodes[i + 1]
    else (nodes[i + 1], nodes[i])
    for i in range(0, len(nodes) - 1, 2)
]
odd_edges = [
    (nodes[i], nodes[i + 1])
    if nodes[i] < nodes[i + 1]
    else (nodes[i + 1], nodes[i])
    for i in range(1, len(nodes) - 1, 2)
]
edge_list = [
    (edge[0], edge[1]) if edge[0] < edge[1] else (edge[1], edge[0])
    for edge in graph_100.edge_list()
]

swap_strategy = SwapStrategy(CouplingMap(edge_list), (even_edges, odd_edges))

Remapear o grafo usando um mapeador SAT

Mesmo quando um circuito é composto por portas comutativas (este é o caso do circuito QAOA, mas também de simulações Trotterizadas de Hamiltonianos de Ising), encontrar um bom mapeamento inicial é uma tarefa desafiadora. A abordagem baseada em SAT apresentada em [2] permite descobrir mapeamentos iniciais eficazes para circuitos com portas comutativas, resultando em uma redução significativa no número de camadas SWAP necessárias. Demonstrou-se que essa abordagem escala para até 500 qubits, conforme ilustrado no artigo.

O código a seguir demonstra como usar o SATMapper de Matsuo et al. para remapear o grafo. Esse processo permite que o problema seja mapeado para um estado inicial mais otimizado para uma estratégia SWAP especificada, resultando em uma redução significativa no número de camadas SWAP necessárias para executar o circuito.

No SATMapper, o problema de encontrar um bom mapeamento inicial é formulado como um problema SAT. Um solver SAT é utilizado para encontrar tal mapeamento inicial para o circuito QAOA. O python-sat (pysat abreviadamente) é uma biblioteca Python para um solver SAT, e vamos utilizá-lo para resolver o problema SAT neste exemplo.

"""A class to solve the SWAP gate insertion initial mapping problem
using the SAT approach from https://arxiv.org/abs/2212.05666.
"""

@dataclass
class SATResult:
    """A data class to hold the result of a SAT solver."""

    satisfiable: bool  # Satisfiable is True if the SAT model could be solved
    # in a given time.
    solution: dict  # The solution to the SAT problem if it is satisfiable.
    mapping: list  # The mapping of nodes in the pattern graph to nodes in the
    # target graph.
    elapsed_time: float  # The time it took to solve the SAT model.

class SATMapper:
    r"""A class to introduce a SAT-approach to solve
    the initial mapping problem in SWAP gate insertion for commuting gates.

    When this pass is run on a DAG it will look for the first instance of
    :class:`.Commuting2qBlock` and use the program graph :math:`P` of this block
    of gates to find a layout for a given swap strategy. This layout is found
    with a binary search over the layers :math:`l` of the swap strategy. At each
    considered layer a subgraph isomorphism problem formulated as a SAT is solved
    by a SAT solver. Each instance is whether it is possible to embed the program
    graph :math:`P` into the effective connectivity graph :math:`C_l` that is
    achieved by applying :math:`l` layers of the swap strategy to the coupling map
    :math:`C_0` of the backend. Since solving SAT problems can be hard, a
    ``time_out`` fixes the maximum time allotted to the SAT solver for each
    instance. If this time is exceeded the considered problem is deemed
    unsatisfiable and the binary search proceeds to the next number of swap
    layers :math:``l``.
    """

    def __init__(self, timeout: int = 60):
        """Initialize the SATMapping.

        Args:
            timeout: The allowed time in seconds for each iteration of the SAT
                solver. This variable defaults to 60 seconds.
        """
        self.timeout = timeout

    def find_initial_mappings(
        self,
        program_graph: rx.Graph,
        swap_strategy: SwapStrategy,
        min_layers: int | None = None,
        max_layers: int | None = None,
    ) -> dict[int, SATResult]:
        r"""Find an initial mapping for a given swap strategy. Perform a
        binary search over the number of swap layers, and for each number
        of swap layers solve a subgraph isomorphism problem formulated as
        a SAT problem.

        Args:
            program_graph (rx.Graph): The program graph with commuting gates, where
                                        each edge represents a two-qubit gate.
            swap_strategy (SwapStrategy): The swap strategy to use to find the
                                        initial mapping.
            min_layers (int): The minimum number of swap layers to consider.
                                        Defaults to the maximum degree of the
                                        program graph - 2.
            max_layers (int): The maximum number of swap layers to consider.
                                        Defaults to the number of qubits in the
                                        swap strategy - 2.

        Returns:
            dict[int, SATResult]: A dictionary containing the results of the SAT
                                    solver for each number of swap layers.
        """
        num_nodes_g1 = len(program_graph.nodes())
        num_nodes_g2 = swap_strategy.distance_matrix.shape[0]
        if num_nodes_g1 > num_nodes_g2:
            return SATResult(False, [], [], 0)
        if min_layers is None:
            # use the maximum degree of the program graph - 2
            # as the lower bound.
            min_layers = max((d for _, d in program_graph.degree)) - 2
        if max_layers is None:
            max_layers = num_nodes_g2 - 1

        variable_pool = IDPool(start_from=1)
        variables = np.array(
            [
                [variable_pool.id(f"v_{i}_{j}") for j in range(num_nodes_g2)]
                for i in range(num_nodes_g1)
            ],
            dtype=int,
        )
        vid2mapping = {v: idx for idx, v in np.ndenumerate(variables)}
        binary_search_results = {}

        def interrupt(solver):
            # This function is called to interrupt the solver when the
            # timeout is reached.
            solver.interrupt()

        # Make a cnf (conjunctive normal form) for the one-to-one
        # mapping constraint
        cnf1 = []
        for i in range(num_nodes_g1):
            clause = variables[i, :].tolist()
            cnf1.append(clause)
            for k, m in combinations(clause, 2):
                cnf1.append([-1 * k, -1 * m])
        for j in range(num_nodes_g2):
            clause = variables[:, j].tolist()
            for k, m in combinations(clause, 2):
                cnf1.append([-1 * k, -1 * m])

        # Perform a binary search over the number of swap layers to find the
        # minimum number of swap layers that satisfies the subgraph isomorphism
        # problem.
        while min_layers < max_layers:
            num_layers = (min_layers + max_layers) // 2

            # Create the connectivity matrix. Note that if the swap strategy
            # cannot reach full connectivity then its distance matrix will have
            # entries with -1. These entries must be treated as False.
            d_matrix = swap_strategy.distance_matrix
            connectivity_matrix = (
                (-1 < d_matrix) & (d_matrix <= num_layers)
            ).astype(int)
            # Make a cnf for the adjacency constraint
            cnf2 = []
            for e_0, e_1 in list(program_graph.edge_list()):
                clause_matrix = np.multiply(
                    connectivity_matrix, variables[e_1, :]
                )
                clause = np.concatenate(
                    (
                        [[-variables[e_0, i]] for i in range(num_nodes_g2)],
                        clause_matrix,
                    ),
                    axis=1,
                )
                # Remove 0s from each clause
                cnf2.extend([c[c != 0].tolist() for c in clause])

            cnf = CNF(from_clauses=cnf1 + cnf2)

            with Solver(bootstrap_with=cnf, use_timer=True) as solver:
                # Solve the SAT problem with a timeout.
                # Timer is used to interrupt the solver when the
                # timeout is reached.
                timer = Timer(self.timeout, interrupt, [solver])
                timer.start()
                status = solver.solve_limited(expect_interrupt=True)
                timer.cancel()
                # Get the solution and the elapsed time.
                sol = solver.get_model()
                e_time = solver.time()

                print(
                    f"Layers: {num_layers}, Status: {status}, Time: {e_time}"
                )
                if status:
                    # If the SAT problem is satisfiable, convert the solution
                    # to a mapping.
                    mapping = [vid2mapping[idx] for idx in sol if idx > 0]
                    binary_search_results[num_layers] = SATResult(
                        status, sol, mapping, e_time
                    )
                    max_layers = num_layers
                else:
                    # If the SAT problem is unsatisfiable, return the last
                    # satisfiable solution.
                    binary_search_results[num_layers] = SATResult(
                        status, sol, [], e_time
                    )
                    min_layers = num_layers + 1

        return binary_search_results

    def remap_graph_with_sat(
        self, graph: rx.Graph, swap_strategy, max_layers
    ):
        """Applies the SAT mapping.

        Args:
            graph (nx.Graph): The graph to remap.
            swap_strategy (SwapStrategy): The swap strategy to use
                                            to find the initial mapping.

        Returns:
            tuple: A tuple containing the remapped graph, the edge map, and the
            number of layers of the swap strategy that was used to find the
            initial mapping. If no solution is found then the tuple contains
            None for each element. Note the returned edge map `{k: v}` means that
            node `k` in the original graph gets mapped to node `v` in the
            Pauli strings.
        """
        num_nodes = len(graph.nodes())
        results = self.find_initial_mappings(
            graph, swap_strategy, 0, max_layers
        )
        solutions = [k for k, v in results.items() if v.satisfiable]

        if len(solutions):
            min_k = min(solutions)
            edge_map = dict(results[min_k].mapping)
            # Create the remapped graph
            remapped_graph = rx.PyGraph()
            remapped_graph.add_nodes_from(range(num_nodes))
            mapping = dict(results[min_k].mapping)
            for i, graph_edge in enumerate(list(graph.edge_list())):
                remapped_edge = tuple(mapping[node] for node in graph_edge)
                remapped_graph.add_edge(*remapped_edge, graph.edges()[i])
            return remapped_graph, edge_map, min_k
        else:
            return None, None, None

sm = SATMapper(timeout=10)
remapped_graph, edge_map, min_swap_layers = sm.remap_graph_with_sat(
    graph=graph_100, swap_strategy=swap_strategy, max_layers=1
)
print("Map from old to new nodes: ", edge_map)
print("Min SWAP layers:", min_swap_layers)
draw_graph(remapped_graph, node_size=200, with_labels=True, width=1)

Layers: 0, Status: True, Time: 0.022812999999999306
Map from old to new nodes:  {0: 0, 1: 1, 2: 2, 3: 3, 4: 4, 5: 5, 6: 6, 7: 7, 8: 8, 9: 9, 10: 10, 11: 11, 12: 12, 13: 13, 14: 14, 15: 15, 16: 16, 17: 17, 18: 18, 19: 19, 20: 20, 21: 21, 22: 22, 23: 23, 24: 24, 25: 25, 26: 26, 27: 27, 28: 28, 29: 29, 30: 30, 31: 31, 32: 32, 33: 33, 34: 34, 35: 35, 36: 36, 37: 37, 38: 38, 39: 39, 40: 40, 41: 41, 42: 42, 43: 43, 44: 44, 45: 45, 46: 46, 47: 47, 48: 48, 49: 49, 50: 50, 51: 51, 52: 52, 53: 53, 54: 54, 55: 55, 56: 56, 57: 57, 58: 58, 59: 59, 60: 60, 61: 61, 62: 62, 63: 63, 64: 64, 65: 65, 66: 66, 67: 67, 68: 68, 69: 69, 70: 70, 71: 71, 72: 72, 73: 73, 74: 74, 75: 75, 76: 76, 77: 77, 78: 78, 79: 79, 80: 80, 81: 81, 82: 82, 83: 83, 84: 84, 85: 85, 86: 86, 87: 87, 88: 88, 89: 89, 90: 90, 91: 91, 92: 92, 93: 93, 94: 94, 95: 95, 96: 96, 97: 97, 98: 98, 99: 99}
Min SWAP layers: 0

remapped_max_cut_paulis = build_max_cut_paulis(remapped_graph)
# define a qiskit SparsePauliOp from the list of paulis
remapped_cost_operator = SparsePauliOp.from_list(remapped_max_cut_paulis)
print(remapped_cost_operator)

SparsePauliOp(['IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZ', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZI', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'IIIIZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII'],
              coeffs=[1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j, 1.+0.j,
 1.+0.j, 1.+0.j, 1.+0.j])

Construir um circuito QAOA com a estratégia SWAP e o mapeamento SAT

Queremos aplicar as estratégias SWAP apenas à camada do operador de custo, por isso começamos criando o bloco isolado que transformaremos e adicionaremos ao circuito QAOA final.

Para isso, podemos usar a classe QAOAAnsatz do Qiskit. Passamos um circuito vazio para os campos initial_state e mixer_operator para garantir que estamos construindo uma camada do operador de custo de forma isolada. Também definimos o mapa de coloração de arestas para que as portas RZZ sejam posicionadas próximas às portas SWAP. Esse posicionamento estratégico nos permite explorar cancelamentos de CX, otimizando o circuito para melhor desempenho. Esse processo é executado dentro da função create_qaoa_swap_circuit.

def make_meas_map(circuit: QuantumCircuit) -> dict:
    """Return a mapping from qubit index (the key) to classical bit (the value).

    This allows us to account for the swapping order introduced by the SWAP strategy.
    """
    creg = circuit.cregs[0]
    qreg = circuit.qregs[0]

    meas_map = {}
    for inst in circuit.data:
        if inst.operation.name == "measure":
            meas_map[qreg.index(inst.qubits[0])] = creg.index(inst.clbits[0])

    return meas_map

def apply_swap_strategy(
    circuit: QuantumCircuit,
    swap_strategy: SwapStrategy,
    edge_coloring: dict[tuple[int, int], int] | None = None,
) -> QuantumCircuit:
    """Transpile with a SWAP strategy.

    Returns:
        A quantum circuit transpiled with the given swap strategy.
    """

    pm_pre = PassManager(
        [
            FindCommutingPauliEvolutions(),
            Commuting2qGateRouter(
                swap_strategy,
                edge_coloring,
            ),
        ]
    )
    return pm_pre.run(circuit)

def apply_qaoa_layers(
    cost_layer: QuantumCircuit,
    meas_map: dict,
    num_layers: int,
    gamma: list[float] | ParameterVector = None,
    beta: list[float] | ParameterVector = None,
    initial_state: QuantumCircuit = None,
    mixer: QuantumCircuit = None,
):
    """Applies QAOA layers to construct circuit.

    First, the initial state is applied. If `initial_state` is None, we begin in the
    initial superposition state. Next, we alternate between layers of the cost operator
    and the mixer. The cost operator is alternatively applied in order and in reverse
    instruction order. This allows us to apply the swap strategy on odd `p` layers
    and undo the swap strategy on even `p` layers.
    """

    num_qubits = cost_layer.num_qubits
    new_circuit = QuantumCircuit(num_qubits, num_qubits)

    if initial_state is not None:
        new_circuit.append(initial_state, range(num_qubits))
    else:
        # all h state by default
        new_circuit.h(range(num_qubits))

    if gamma is None or beta is None:
        gamma = ParameterVector("γ'", num_layers)
        if mixer is None or mixer.num_parameters == 0:
            beta = ParameterVector("β'", num_layers)
        else:
            beta = ParameterVector("β'", num_layers * mixer.num_parameters)

    if mixer is not None:
        mixer_layer = mixer
    else:
        mixer_layer = QuantumCircuit(num_qubits)
        mixer_layer.rx(-2 * beta[0], range(num_qubits))

    for layer in range(num_layers):
        bind_dict = {cost_layer.parameters[0]: gamma[layer]}
        cost_layer_ = cost_layer.assign_parameters(bind_dict)
        bind_dict = {
            mixer_layer.parameters[i]: beta[layer + i]
            for i in range(mixer_layer.num_parameters)
        }
        layer_mixer = mixer_layer.assign_parameters(bind_dict)

        if layer % 2 == 0:
            new_circuit.append(cost_layer_, range(num_qubits))
        else:
            new_circuit.append(cost_layer_.reverse_ops(), range(num_qubits))

        new_circuit.append(layer_mixer, range(num_qubits))

    for qidx, cidx in meas_map.items():
        new_circuit.measure(qidx, cidx)

    return new_circuit

def create_qaoa_swap_circuit(
    cost_operator: SparsePauliOp,
    swap_strategy: SwapStrategy,
    edge_coloring: dict = None,
    theta: list[float] = None,
    qaoa_layers: int = 1,
    initial_state: QuantumCircuit = None,
    mixer: QuantumCircuit = None,
):
    """Create the circuit for QAOA.

    Notes: This circuit construction for QAOA works for quadratic terms in `Z` and will be
    extended to first-order terms in `Z`. Higher-orders are not supported.

    Args:
        cost_operator: the cost operator.
        swap_strategy: selected swap strategy
        edge_coloring: A coloring of edges that should correspond to the coupling
            map of the hardware. It defines the order in which we apply the Rzz
            gates. This allows us to choose an ordering such that `Rzz` gates will
            immediately precede SWAP gates to leverage CNOT cancellation.
        theta: The QAOA angles.
        qaoa_layers: The number of layers of the cost operator and the mixer operator.
        initial_state: The initial state on which we apply layers of cost operator
            and mixer.
        mixer: The QAOA mixer. It will be applied as is onto the QAOA circuit. Therefore,
            its output must have the same ordering of qubits as its input.
    """

    num_qubits = cost_operator.num_qubits

    if theta is not None:
        gamma = theta[: len(theta) // 2]
        beta = theta[len(theta) // 2 :]
        qaoa_layers = len(theta) // 2
    else:
        gamma = beta = None

    # First, create the ansatz of one layer of QAOA without mixer
    cost_layer = QAOAAnsatz(
        cost_operator,
        reps=1,
        initial_state=QuantumCircuit(num_qubits),
        mixer_operator=QuantumCircuit(num_qubits),
    ).decompose()

    # This will allow us to recover the permutation of the measurements that the swaps introduce.
    cost_layer.measure_all()

    # Now, apply the swap strategy for commuting gates
    cost_layer = apply_swap_strategy(cost_layer, swap_strategy, edge_coloring)

    # Compute the measurement map (qubit to classical bit).
    # We will apply this for odd layers where the swaps were inserted.
    if qaoa_layers % 2 == 1:
        meas_map = make_meas_map(cost_layer)
    else:
        meas_map = {idx: idx for idx in range(num_qubits)}

    cost_layer.remove_final_measurements()

    # Finally, introduce the mixer circuit and add measurements following measurement map
    circuit = apply_qaoa_layers(
        cost_layer, meas_map, qaoa_layers, gamma, beta, initial_state, mixer
    )

    return circuit

# We can define the edge_coloring map so that RZZ gates are positioned right before SWAP gates to exploit CX cancellations
# We use greedy edge coloring from rustworkx to color the edges of the graph. This coloring is used to order the RZZ gates in the circuit.

edge_coloring_idx = rx.graph_greedy_edge_color(graph_100)
edge_coloring = {
    edge: edge_coloring_idx[idx]
    for idx, edge in enumerate(list(graph_100.edge_list()))
}
edge_coloring = {tuple(sorted(k)): v for k, v in edge_coloring.items()}

qaoa_circ = create_qaoa_swap_circuit(
    remapped_cost_operator,
    swap_strategy,
    edge_coloring=edge_coloring,
    qaoa_layers=1,
)

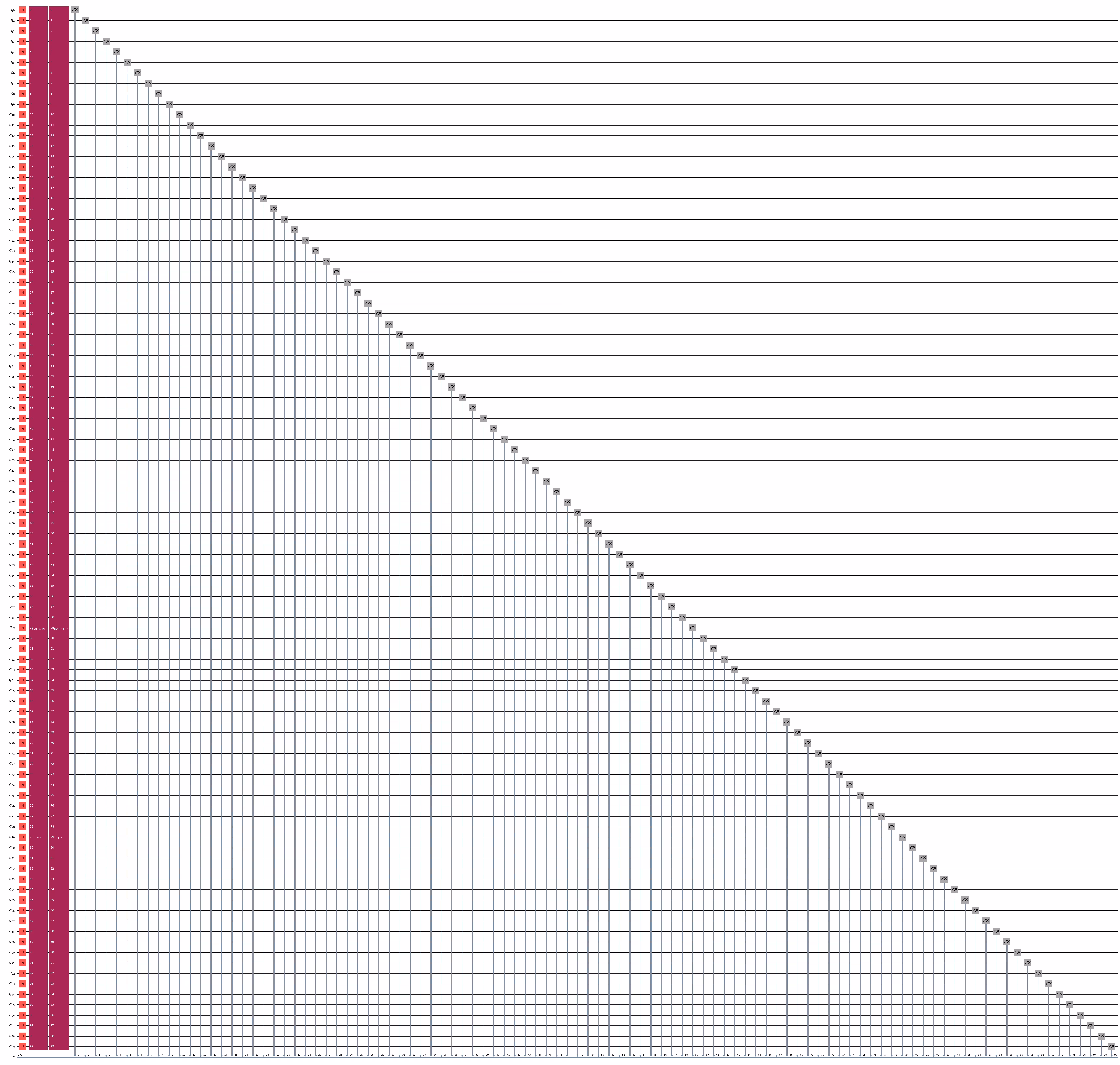

qaoa_circ.draw(output="mpl", fold=False)

/Users/mirko/Workspace/documentation/.venv/lib/python3.13/site-packages/qiskit/circuit/quantumcircuit.py:4625: UserWarning: Trying to add QuantumRegister to a QuantumCircuit having a layout
  circ.add_register(qreg)

Passo 3: Executar com os primitivos do Qiskit

Definir uma função de custo CVaR

Este exemplo mostra como usar a função de custo Valor em Risco Condicional (CVaR, do inglês Conditional Value at Risk) introduzida em [3] dentro dos algoritmos variacionais de otimização quântica.

O CVaR de uma variável aleatória $X$ para um nível de confiança $α ∈ (0, 1]$ é definido como $CVaR_{\alpha}(X) = \mathbb{E} \lbrack X | X \leq F_X^{-1}(\alpha) \rbrack$ onde $F_X^{-1}(p)$ é a função de distribuição acumulada inversa de $X$. Em outras palavras, o CVaR é o valor esperado da cauda inferior $\alpha$ da distribuição de $X$.

pass_manager = generate_preset_pass_manager(
    backend=backend,
    optimization_level=3,
)

transpiled_qaoa_circ = pass_manager.run(qaoa_circ)

# Utility functions for the evaluation of the expectation value of a measured state
# In this code, for optimization, the measured state is converted into a bit string,
# and the sign of the value is determined by taking the exclusive OR of the bits
# corresponding to Pauli Z.

_PARITY = np.array(
    [-1 if bin(i).count("1") % 2 else 1 for i in range(256)],
    dtype=np.complex128,
)

def evaluate_sparse_pauli(state: int, observable: SparsePauliOp) -> complex:
    """Utility for the evaluation of the expectation value of a measured state.

    Args:
        state (int): The measured state.
        observable (SparsePauliOp): The observable to evaluate the expectation value for.

    Returns:
        complex: The expectation value of the measured state.
    """
    packed_uint8 = np.packbits(
        observable.paulis.z, axis=1, bitorder="little"
    )  # convert observable to array with 8 bit integer
    state_bytes = np.frombuffer(
        state.to_bytes(packed_uint8.shape[1], "little"),
        dtype=np.uint8,  # convert bitstring to array with 8 bit integer
    )
    reduced = np.bitwise_xor.reduce(
        packed_uint8 & state_bytes, axis=1
    )  # take bitwise xor of the result of 'and' conditional on the above two, return 0 or 1
    return np.sum(observable.coeffs * _PARITY[reduced])

def qaoa_sampler_cost_fun(
    params, ansatz, hamiltonian, sampler, aggregation=None
):
    """Standard sampler-based QAOA cost function to be plugged into optimizer routines.

    Args:
        params (np.ndarray): Parameters for the ansatz.
        ansatz (QuantumCircuit): Ansatz circuit.
        hamiltonian (SparsePauliOp): Hamiltonian to be minimized.
        sampler (QAOASampler): Sampler to be used.
        aggregation (Callable | float | None): Aggregation function to be applied to
            the sampled results. If None, the sum of the expectation values is returned.
            If float, the CVaR with the given alpha is used.
    """
    # Run the circuit
    job = sampler.run([(ansatz, params)])
    sampler_result = job.result()
    sampled_int_counts = sampler_result[
        0
    ].data.c.get_int_counts()  # bitstrings are stored as integers
    shots = sum(sampled_int_counts.values())
    int_count_distribution = {
        key: val / shots for key, val in sampled_int_counts.items()
    }

    # a dictionary containing: {state: (measurement probability, value)}
    evaluated = {
        state: (
            probability,
            np.real(evaluate_sparse_pauli(state, hamiltonian)),
        )
        for state, probability in int_count_distribution.items()
    }

    # If aggregation is None, return the sum of the expectation values.
    # If aggregation is a float, return the CVaR with the given alpha.
    # Otherwise, use the aggregation function.
    if aggregation is None:
        result = sum(
            probability * value for probability, value in evaluated.values()
        )
    elif isinstance(aggregation, float):
        cvar_aggregation = _get_cvar_aggregation(aggregation)
        result = cvar_aggregation(evaluated.values())
    else:
        result = aggregation(evaluated.values())

    global iter_counts, result_dict
    iter_counts += 1
    temp_dict = {}
    temp_dict["params"] = params.tolist()
    temp_dict["cvar_fval"] = result
    temp_dict["fval"] = sum(
        probability * value for probability, value in evaluated.values()
    )
    temp_dict["distribution"] = sampled_int_counts
    temp_dict["evaluated"] = evaluated
    result_dict[iter_counts] = temp_dict
    print(f"Iteration {iter_counts}: {result}")

    return result

def _get_cvar_aggregation(alpha: float | None) -> Callable:
    """Return the CVaR aggregation function with the given alpha.

    Args:
        alpha (float | None): Alpha value for the CVaR aggregation. If None, 1 is used
            by default.
    Raises:
        ValueError: If alpha is not in [0, 1].
    """
    if alpha is None:
        alpha = 1
    elif not 0 <= alpha <= 1:
        raise ValueError(f"alpha must be in [0, 1], but {alpha} was given.")

    def cvar_aggregation(
        objective_dict: Iterable[tuple[float, float]],
    ) -> float:
        """Return the CVaR of the given measurements.
        Args:
            objective_dict (Iterable[tuple[float, float]]): An iterable of tuples containing
                the measured bit string and the objective value based on the bit string.

        """
        sorted_measurements = sorted(objective_dict, key=lambda x: x[1])
        # accumulate the probabilities until alpha is reached
        accumulated_percent = 0.0
        cvar = 0.0
        for probability, value in sorted_measurements:
            cvar += value * min(probability, alpha - accumulated_percent)
            accumulated_percent += probability
            if accumulated_percent >= alpha:
                break
        return cvar / alpha

    return cvar_aggregation

O CVaR pode ser utilizado como técnica de mitigação de erros, conforme discutido anteriormente [4]. Neste exemplo, determinamos $\alpha$ e o número de shots de acordo com a taxa de erro do circuito.

num_2q_ops = transpiled_qaoa_circ.count_ops()[
    "cz"
]  # the two qubit gates on our backend are cz's.

for el in backend.properties().general:
    if el.name[:2] == "lf" and el.name[3:] == str(
        n
    ):  # pick out lf_100, lf of the best 100q chain
        lf = el.value  # layer fidelity
        print("layer fidelity", lf)
        eplg = 1 - lf ** (1 / (n - 1))  # error per layered gate (EPLG)
        fid_cz = 1 - eplg
        gamma_cz = 1 / fid_cz**2
        gamma_circ = gamma_cz**num_2q_ops

cvar_aggregation = 1 / np.sqrt(gamma_circ)
print("")
print("The corresponding CVaR aggregation value is: ", cvar_aggregation)
print(
    "To mitigate the twirled noise, increase shots by a factor of",
    np.sqrt(gamma_circ),
)

layer fidelity 0.5454643821399414

The corresponding CVaR aggregation value is:  0.2568730767702702
To mitigate the twirled noise, increase shots by a factor of 3.8929731857197782

iter_counts = 0
result_dict = {}
init_params = [np.pi, np.pi / 2]

with Session(backend=backend) as session:
    sampler = Sampler(mode=session)
    sampler.options.default_shots = int(1000 / cvar_aggregation)
    sampler.options.dynamical_decoupling.enable = True
    sampler.options.dynamical_decoupling.sequence_type = "XY4"
    sampler.options.twirling.enable_gates = True
    sampler.options.twirling.enable_measure = True

    result = minimize(
        qaoa_sampler_cost_fun,
        init_params,
        args=(
            transpiled_qaoa_circ,
            remapped_cost_operator,
            sampler,
            cvar_aggregation,
        ),
        method="COBYLA",
        tol=1e-2,
    )
print(result)

Iteration 1: -13.227556797094595
Iteration 2: -13.181545294899571
Iteration 3: -13.149537293372594
Iteration 4: -3.305576300816324
Iteration 5: -12.647411769418035
Iteration 6: -13.443610807401718
Iteration 7: -12.475368761210511
Iteration 8: -15.905726329447413
Iteration 9: -18.011752834505565
Iteration 10: -14.125781339945583
Iteration 11: -19.693673319331744
Iteration 12: -21.175543794613695
Iteration 13: -21.805701324676196
Iteration 14: -22.121280244318488
Iteration 15: -20.02575633517435
Iteration 16: -22.399349757584158
Iteration 17: -22.569392265696226
Iteration 18: -21.877719328111898
Iteration 19: -22.79144777628963
Iteration 20: -22.437359259397432
Iteration 21: -23.021505287264777
Iteration 22: -22.69742427180412
Iteration 23: -23.12553129222746
Iteration 24: -22.893473281156922
 message: Return from COBYLA because the trust region radius reaches its lower bound.
 success: True
  status: 0
     fun: -23.12553129222746
       x: [ 2.766e+00  1.080e+00]
    nfev: 24
   maxcv: 0.0

Step 4: Post-process and return result in desired classical format

from matplotlib import pyplot as plt

plt.figure(figsize=(12, 6))
plt.plot(
    [result_dict[i]["cvar_fval"] for i in range(1, iter_counts + 1)],
    label="CVaR",
)
plt.plot(
    [result_dict[i]["fval"] for i in range(1, iter_counts + 1)],
    label="Standard",
)
plt.legend()
plt.xlabel("Iteration")
plt.ylabel("Cost")
plt.show()

O trecho a seguir recupera a melhor solução dentre as bitstrings amostradas.

# sort the result_dict[iter_counts]['evaluated'] by the CVaR value
sorted_result_dict = [
    (k, v)
    for k, v in sorted(
        result_dict[iter_counts]["evaluated"].items(),
        key=lambda item: item[1][1],
    )
]
print(
    f"bitstring (int): {sorted_result_dict[0][0]}, probability: {sorted_result_dict[0][1][0]}, objective value: {sorted_result_dict[0][1][1]}"
)

bitstring (int): 283561207335785714592526814041, probability: 0.00025693730729701953, objective value: -43.0

Considere o Hamiltoniano $H_C$ para o problema Max-Cut. Seja cada vértice do grafo associado a um qubit no estado $|0\rangle$ ou $|1\rangle$, onde o valor indica o conjunto ao qual o vértice pertence. O objetivo do problema é maximizar o número de arestas $(v_1, v_2)$ para as quais $v_1 = |0\rangle$ e $v_2 = |1\rangle$, ou vice-versa. Se associarmos o operador $Z$ a cada qubit, de modo que

$$Z|0\rangle = |0\rangle \qquad Z|1\rangle = -|1\rangle$$

então uma aresta $(v_1, v_2)$ pertence ao corte se o autovalor de $(Z_1|v_1\rangle) \cdot (Z_2|v_2\rangle) = -1$; em outras palavras, os qubits associados a $v_1$ e $v_2$ são diferentes. Da mesma forma, $(v_1, v_2)$ não pertence ao corte se o autovalor de $(Z_1|v_1\rangle) \cdot (Z_2|v_2\rangle) = 1$.

from typing import Sequence

def to_bitstring(integer, num_bits):
    result = np.binary_repr(integer, width=num_bits)
    return [int(digit) for digit in result]

def evaluate_sample(x: Sequence[int], graph: rx.PyGraph) -> float:
    assert len(x) == len(
        list(graph.nodes())
    ), "The length of x must coincide with the number of nodes in the graph."
    return sum(
        x[u] * (1 - x[v])
        + x[v]
        * (
            1 - x[u]
        )  # x[u] = x[v] if same cut, x[u] \neq x[v] if different cuts
        for u, v in list(graph.edge_list())
    )

bitstring = to_bitstring(
    sorted_result_dict[0][0], len(list(remapped_graph.nodes()))
)
bitstring = bitstring[::-1]
print(f"Result bitstring (binary) : {bitstring}")

cut_value = evaluate_sample(bitstring, remapped_graph)
print(f"The value of the cut is: {cut_value}")

Result bitstring (binary) : [1, 0, 0, 1, 1, 0, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1, 1, 1, 0, 0]
The value of the cut is: 77

Por fim, vamos desenhar um grafo com base no resultado do CVaR. Dividimos os nós do grafo em dois conjuntos com base no resultado do CVaR. Os nós do primeiro conjunto são coloridos em cinza, e os nós do segundo conjunto são coloridos em roxo. As arestas entre os dois conjuntos são as arestas cortadas pelo particionamento.

def plot_result(G, x):
    colors = ["tab:grey" if i == 0 else "tab:purple" for i in x]
    pos, _default_axes = rx.spring_layout(G), plt.axes(frameon=True)
    rx.visualization.mpl_draw(
        G,
        node_color=colors,
        node_size=150,
        alpha=0.8,
        pos=pos,
        with_labels=True,
        width=1,
    )

plot_result(graph_100, to_bitstring(sorted_result_dict[0][0], 100)[::-1])

References

[1] Weidenfeller, J., Valor, L. C., Gacon, J., Tornow, C., Bello, L., Woerner, S., & Egger, D. J. (2022). Scaling of the quantum approximate optimization algorithm on superconducting qubit based hardware. Quantum, 6, 870.

[2] Matsuo, A., Yamashita, S., & Egger, D. J. (2023). A SAT approach to the initial mapping problem in SWAP gate insertion for commuting gates. IEICE Transactions on Fundamentals of Electronics, Communications and Computer Sciences, 106(11), 1424-1431.

[3] Barkoutsos, P. K., Nannicini, G., Robert, A., Tavernelli, I., & Woerner, S. (2020). Improving variational quantum optimization using CVaR. Quantum, 4, 256.

[4] Barron, S. V., Egger, D. J., Pelofske, E., Bärtschi, A., Eidenbenz, S., Lehmkuehler, M., & Woerner, S. (2023). Provable bounds for noise-free expectation values computed from noisy samples. arXiv preprint arXiv:2312.00733.

Tutorial survey

Reserve um minuto para compartilhar sua opinião sobre este tutorial. Seu feedback nos ajudará a aprimorar nossos conteúdos e a experiência do usuário.

Link to survey
